Electron Configuration
A concise revision guide to quantum shells, subshells, s and p orbital shapes, electronic configuration notation, Hund’s rule and the Pauli exclusion principle for Edexcel A Level Chemistry (9CH0).
- 1.16-a
- 1.16-b
- 1.16-c
- 1.16-d
- 1.17
- 1.18-a
- 1.18-b
- 1.19-a
- 1.19-b
- 1.19-c
- 1.20-a
- 1.20-b
- 1.21i
- 1.21ii
What these spec points say
- 1.16-a know the number of electrons that can fill the first quantum shell
- 1.16-b know the number of electrons that can fill the second quantum shell
- 1.16-c know the number of electrons that can fill the third quantum shell
- 1.16-d know the number of electrons that can fill the fourth quantum shell
- 1.17 know that an orbital is a region within an atom that can hold up to two electrons with opposite spins
- 1.18-a know the shape of an s-orbital
- 1.18-b know the shape of a p-orbital
- 1.19-a know the number of electrons that occupy s subshells
- 1.19-b know the number of electrons that occupy p subshells
- 1.19-c know the number of electrons that occupy d subshells
- 1.20-a know that electrons fill subshells singly before pairing up
- 1.20-b know that two electrons in the same orbital must have opposite spins
- 1.21i be able to predict the electronic configurations, using 1s notation and electrons-in-boxes notation, of: atoms, given the atomic number, Z, up to Z = 36
- 1.21ii be able to predict the electronic configurations, using 1s notation and electrons-in-boxes notation, of: ions, given the atomic number, Z, and the ionic charge, for s and p block ions only, up to Z = 36
Shapes of Atomic Orbitals: s, p and d
Choose a step to watch each type of orbital form round a nucleus on fixed x, y and z axes, then build up a full second shell.
Filling Orbitals: Electrons in Boxes
Choose a step to watch electrons fill the orbitals in order of energy, from hydrogen to zinc, then see which electrons leave first when iron forms its ions.
© Dr. Mohammed Al-Fatah – onlinelearningsystem.net
© Dr. Mohammed Al-Fatah – onlinelearningsystem.net
GCSE Recap: Electron Shells 2,8,8
Before you start, check that you can still place electrons in shells the GCSE way.
From the Bohr Model to the Quantum Model
At GCSE level, electrons are often shown moving in circular or spherical shells around the nucleus. This early model is useful because it explains why noble gas arrangements are particularly stable.
At A Level, the model becomes more detailed. Electrons are not treated as tiny particles moving in fixed paths. Instead, an orbital describes a region of space where there is a high probability of finding an electron.
Key idea: The quantum model replaces fixed electron orbits with probability-based orbitals.

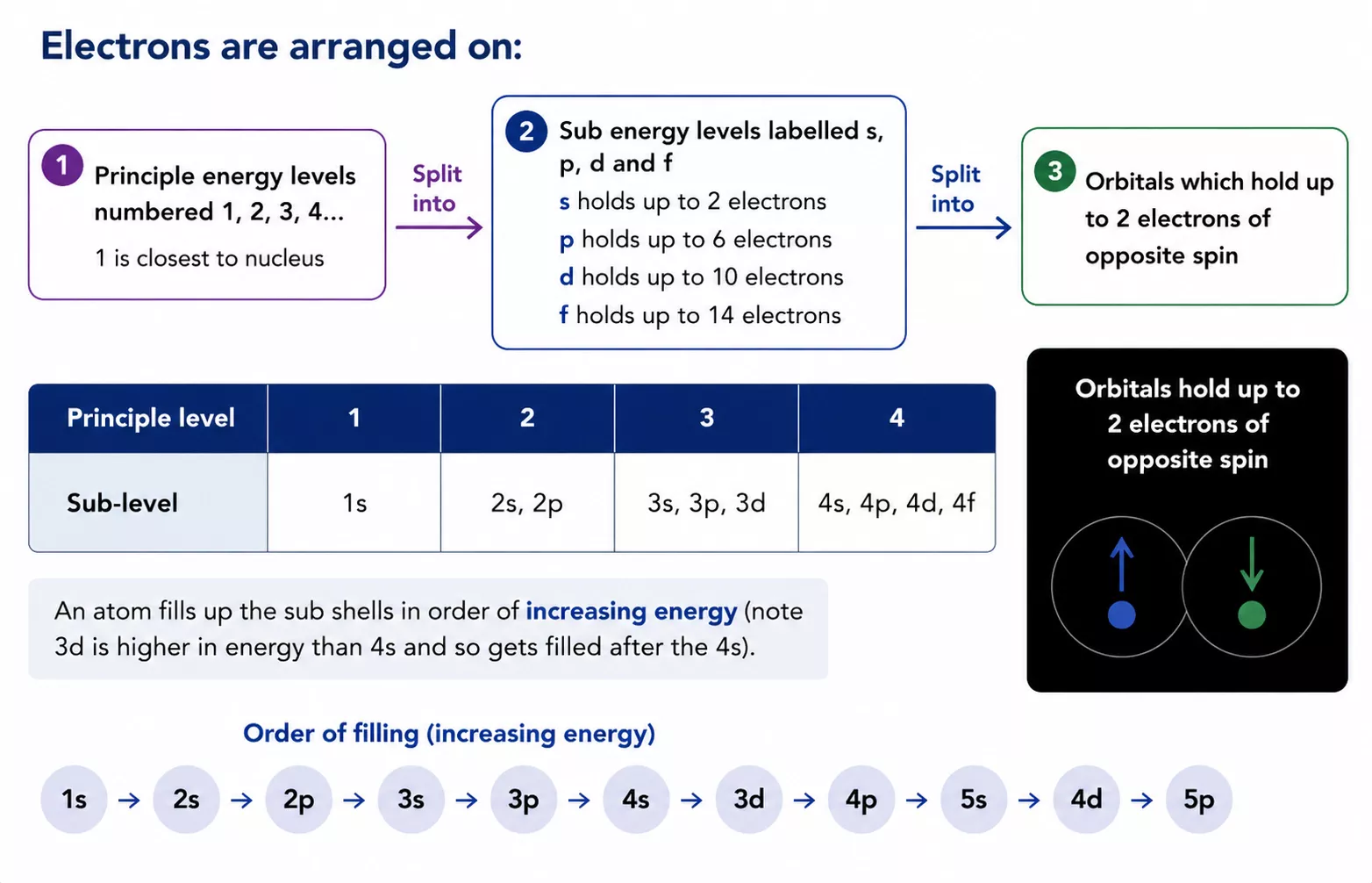

Shells, Subshells and Orbitals
The quantum model describes electron arrangement using three linked levels of organisation: shells, subshells and orbitals.
| Term | Meaning | Key notation |
|---|---|---|
| Shell | A principal energy level around the nucleus. | Defined by the principal quantum number, n. |
| Subshell | A subdivision of a shell. Common subshells are s, p, d and f. | Defined by the angular momentum quantum number, l. |
| Orbital | A specific region in a subshell where an electron is most likely to be found. | Each orbital can hold a maximum of 2 electrons. |
Each type of subshell has a fixed number of orbitals. An s subshell has 1 orbital, a p subshell has 3 orbitals and a d subshell has 5 orbitals.
Each orbital holds up to 2 electrons, so s, p and d subshells hold a maximum of 2, 6 and 10 electrons.
Exam focus: Avoid saying that an orbital is a shell. A shell contains subshells, and subshells contain orbitals.
s, p and d Orbital Shapes
Orbitals describe the mathematical probability of locating an electron in a region around the nucleus. Each orbital has a three-dimensional shape, but these shapes are approximations that help us visualise electron distribution.
The s orbital is spherical. The p orbitals are dumbbell-shaped and are arranged at right angles to each other. The d orbitals have more complex shapes, with four of the five d orbitals having a four-lobed cloverleaf arrangement.
Remember: Orbital diagrams are models. They show regions of high electron probability, not solid surfaces or fixed paths.
Quick Check: Shells, Subshells and Orbitals
Answer three short questions on what an orbital is and how many electrons a subshell or shell can hold.

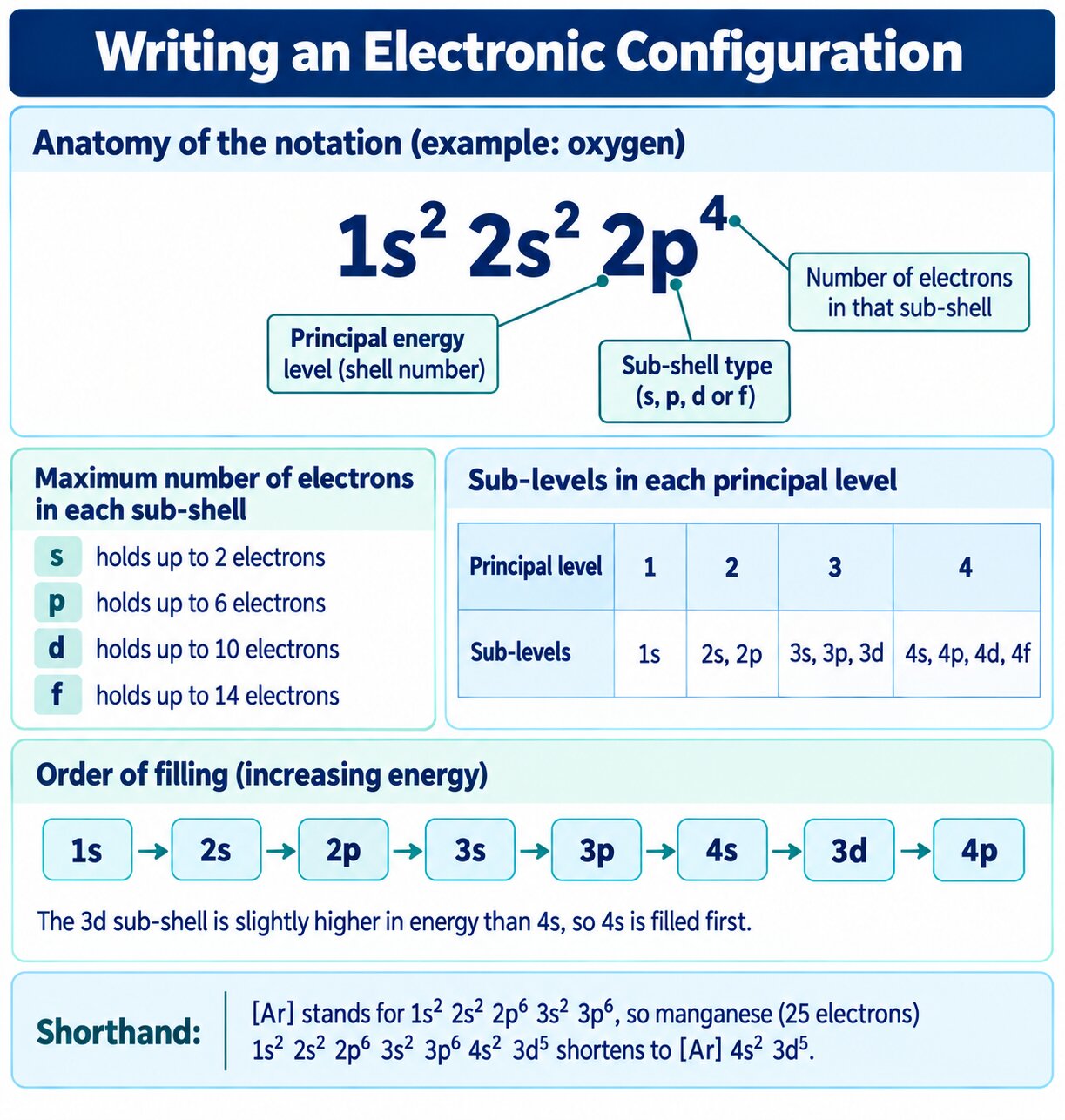

Writing Electronic Configuration
An atom’s electronic configuration shows how its electrons are arranged within atomic orbitals. The notation combines the main energy level, the subshell type and the number of electrons in that subshell.
For example, oxygen is written as 1s² 2s² 2p⁴. The large number shows the main energy level, the letter shows the subshell type, and the superscript shows the number of electrons in that subshell.
Electrons fill subshells in order of increasing energy. For the early part of the sequence, the order is 1s → 2s → 2p → 3s → 3p → 4s → 3d → 4p.
Long configurations can be shortened by using a noble gas core. The symbol [Ar] stands for the 18 electrons of argon, 1s² 2s² 2p⁶ 3s² 3p⁶.
Manganese (25 electrons) is 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d⁵, which shortens to [Ar] 4s² 3d⁵.
Write the configuration in full when the question asks for the full electronic configuration. The 3d and 4s subshells can be written in either order, so [Ar] 3d⁵ 4s² is also correct.
Exam focus: The 4s subshell fills before 3d because 4s is lower in energy than 3d before the 3d subshell is occupied.
Quick Check: Electrons in a Named Subshell
Write each configuration on paper, then type the number of electrons asked for.
This notation shows the shell number, subshell letter and the number of electrons present in that subshell.
Watch: the potassium atom and the K+ ion
Potassium loses one electron to become K+. Which electron goes first, and why that one?

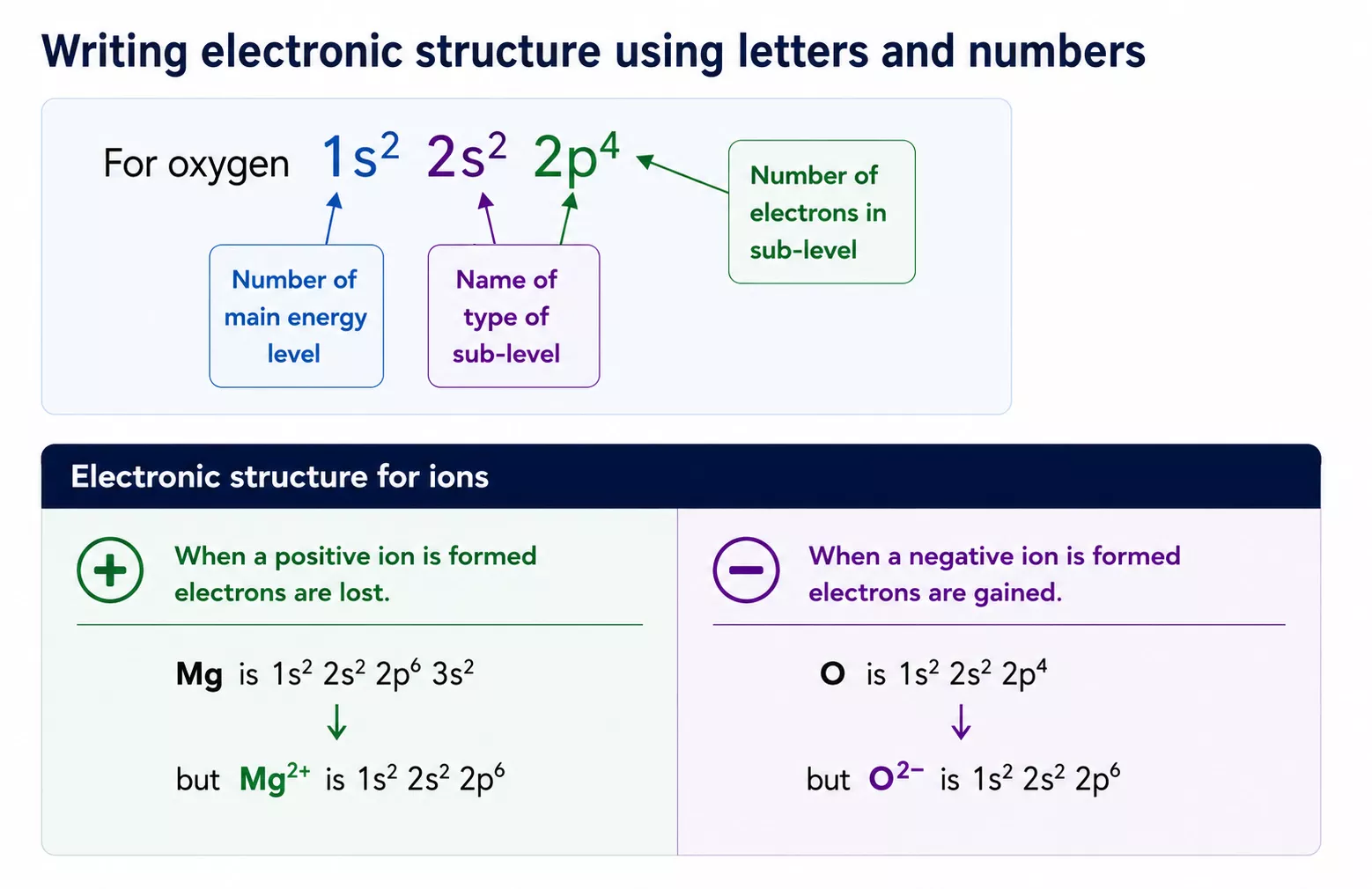

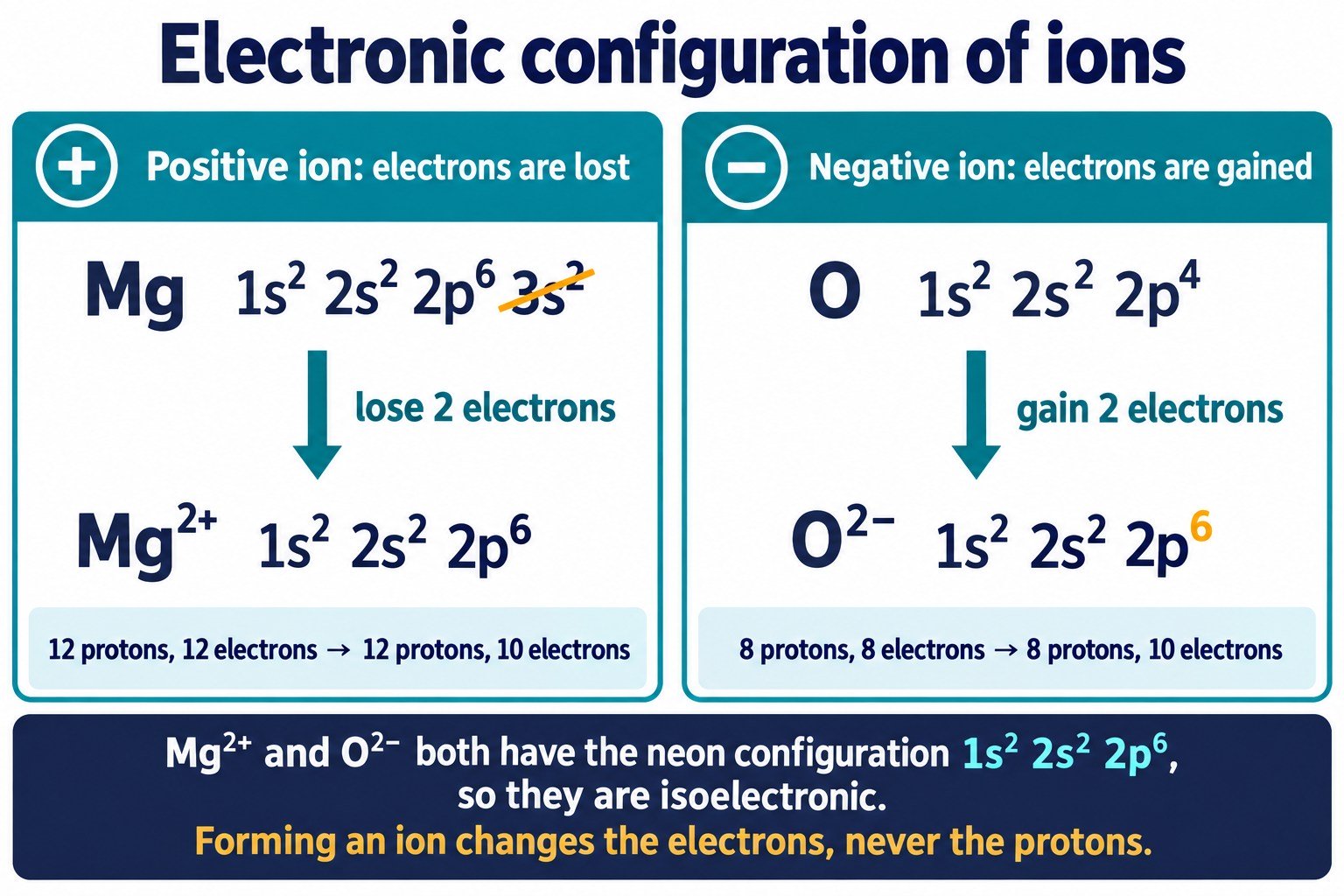

Electronic Configuration of Ions
When ions form, electrons are either lost or gained. A positive ion forms when electrons are lost. A negative ion forms when electrons are gained.
For magnesium, the atom is written as 1s² 2s² 2p⁶ 3s², but Mg²⁺ is written as 1s² 2s² 2p⁶ because two electrons have been lost.
For oxygen, the atom is written as 1s² 2s² 2p⁴, but O²⁻ is written as 1s² 2s² 2p⁶ because two electrons have been gained.
Remember: Ion formation changes the number of electrons, not the number of protons.
Quick Check: Ions with the Same Configuration
Count the electrons in each species and click every one that has the configuration shown.
Chromium, Copper and d-Block Ions
Two atoms in Period 4 do not follow the expected filling pattern. Chromium and copper each have only one electron in 4s.
| Atom | Expected but wrong | Actual configuration |
|---|---|---|
| Chromium (24 electrons) | [Ar] 4s² 3d⁴ | [Ar] 4s¹ 3d⁵ |
| Copper (29 electrons) | [Ar] 4s² 3d⁹ | [Ar] 4s¹ 3d¹⁰ |
A half-filled 3d subshell (3d⁵) and a full 3d subshell (3d¹⁰) are particularly stable arrangements, so one electron occupies 3d instead of pairing up in 4s.
When a d-block atom forms a positive ion, the 4s electrons are lost before the 3d electrons. The 4s subshell fills first, but once 3d contains electrons, 4s is higher in energy, so it also empties first.
For example, manganese is [Ar] 4s² 3d⁵, so Mn²⁺ is [Ar] 3d⁵, not [Ar] 4s² 3d³. Copper is [Ar] 4s¹ 3d¹⁰, so Cu²⁺ is [Ar] 3d⁹.
Common mistake: Removing 3d electrons first when writing the configuration of a d-block ion. In the d-block, 4s is filled first and emptied first.
Positive ions have fewer electrons than their atoms. Negative ions have more electrons than their atoms.
Hund’s Rule
Hund’s rule states that electrons occupy orbitals singly before any pairing occurs in orbitals of the same energy.
This minimises electron-electron repulsion. In a p subshell, there are three p orbitals, so one electron enters each p orbital before any two electrons pair up in the same orbital.
Exam focus: When filling p orbitals, show one arrow in each box first, then pair electrons only after each equal-energy orbital contains one electron.

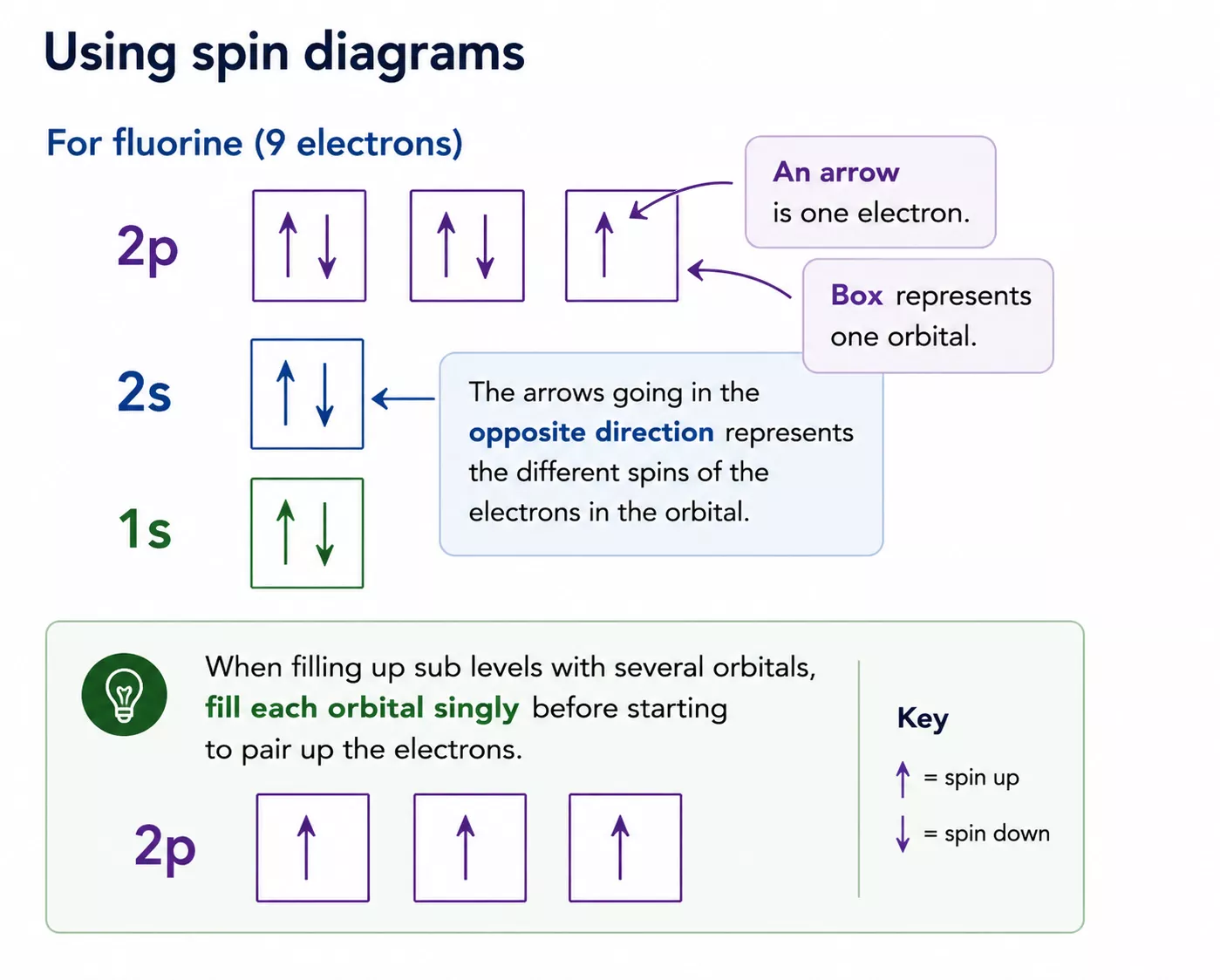

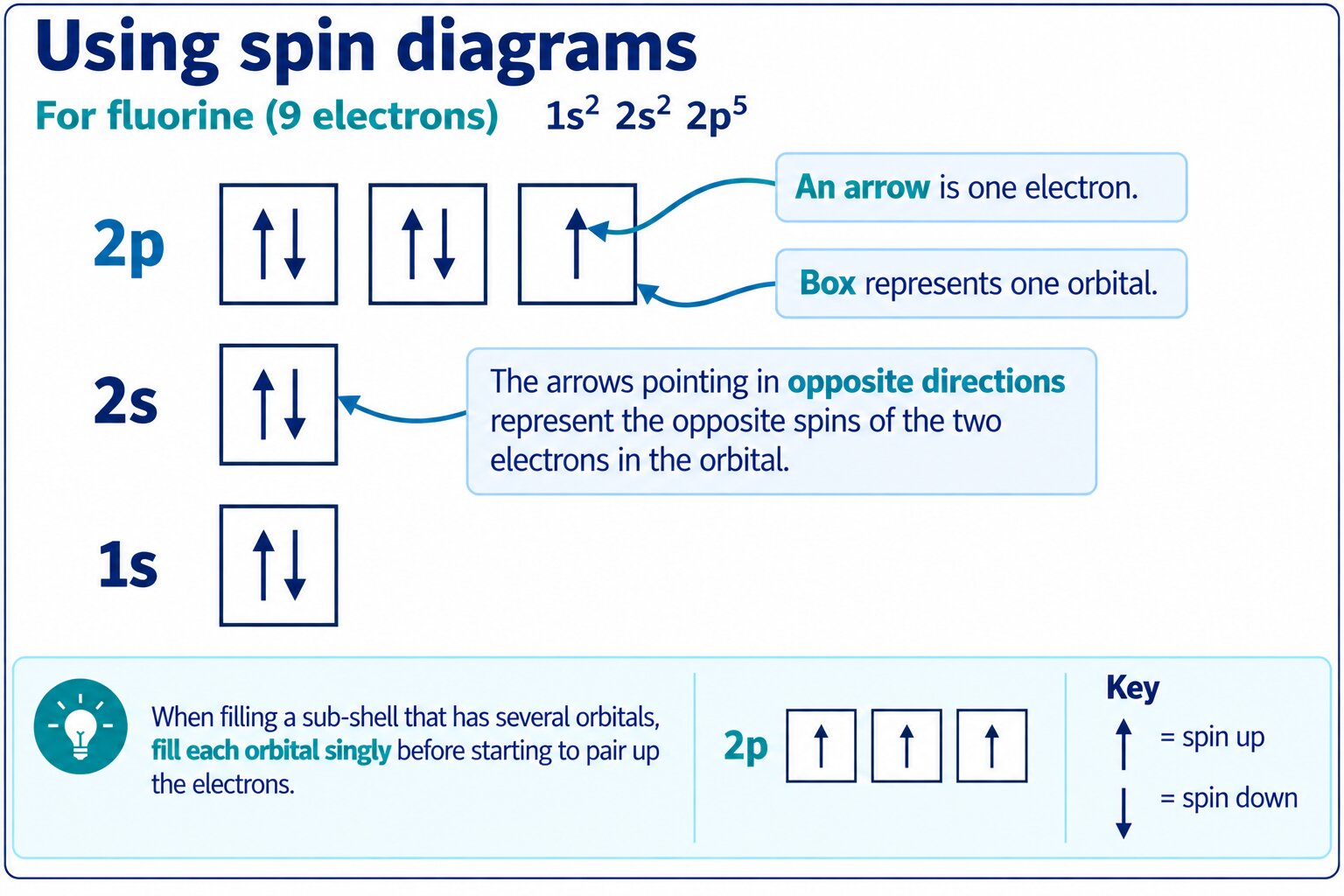

Pauli Exclusion Principle and Spin Diagrams
The Pauli exclusion principle states that no two electrons in the same orbital can have the same spin. This means paired electrons in one orbital must be shown with opposite spins.
In spin diagrams, each box represents one orbital, and each arrow represents one electron. Opposite arrow directions represent opposite electron spins.
Remember: One orbital can hold a maximum of two electrons, and those two electrons must have opposite spin.
Quick Check: Judge the Box Diagrams
In each round, pick the one statement that is accurate.
Quick Check: Draw Electrons-in-Boxes Diagrams
Draw each diagram on paper before you flip the card.
Each box is one orbital. Arrows in opposite directions show paired electrons with opposite spin.
Common Exam Points
Quantum model questions often test precise language about orbitals, correct electronic configurations, and correct use of Hund’s rule and the Pauli exclusion principle.
Define an orbital accurately
An orbital is a region of space where an electron is most likely to be found. It can hold a maximum of two electrons.
Use the correct filling order
Remember that 4s fills before 3d in the usual Aufbau sequence for neutral atoms. The exceptions are chromium (4s¹ 3d⁵) and copper (4s¹ 3d¹⁰). When d-block ions form, the 4s electrons are lost first.
Apply Hund’s rule
Place electrons singly in equal-energy orbitals before pairing them.
Apply Pauli correctly
Two electrons in the same orbital must have opposite spins.
QuickSnap
The quantum model describes electrons using probability-based orbitals rather than fixed paths. A shell is a main energy level, a subshell is a subdivision of a shell, and an orbital is a region where an electron is most likely to be found.
The s orbital is spherical, p orbitals are dumbbell-shaped, and d orbitals have more complex shapes.
Electronic configurations show how electrons fill subshells in order of increasing energy.
Hund’s rule says electrons occupy equal-energy orbitals singly before pairing, while the Pauli exclusion principle says two electrons in the same orbital must have opposite spins.
Shell
A principal energy level defined by the quantum number n.
Subshell
A subdivision of a shell, such as s, p, d or f.
Orbital
A region of high electron probability that can hold up to two electrons.
Spin diagrams
Boxes represent orbitals, arrows represent electrons, and opposite arrows show opposite spin.
Electron Configuration FAQs
Use these quick answers to secure the key wording for Edexcel A Level Chemistry.
What is an orbital?
An orbital is a region of space where an electron is most likely to be found. Each orbital can hold a maximum of two electrons.
What is the difference between a shell and a subshell?
A shell is a principal energy level. A subshell is a subdivision within a shell, such as s, p, d or f.
What shape is an s orbital?
An s orbital is spherical, so it has the same shape in all directions around the nucleus.
What shape are p orbitals?
p orbitals are dumbbell-shaped. The three p orbitals, px, py and pz, are arranged at right angles to each other.
What does Hund’s rule state?
Hund’s rule states that electrons occupy orbitals singly before any pairing occurs in orbitals of the same energy.
What does the Pauli exclusion principle state?
No two electrons in the same orbital can have the same spin. Two electrons in the same orbital must have opposite spins.
