Successive Ionisation Energies
A concise revision guide to successive ionisation energies, why each ionisation energy increases, and how large jumps reveal an element’s group and electronic structure.
What Are Successive Ionisation Energies?
Successive ionisation energies are the energies required to remove electrons one after another from the same element in the gaseous state.
The first ionisation energy removes one electron from a neutral gaseous atom. The second ionisation energy removes one electron from a gaseous 1+ ion. The third ionisation energy removes one electron from a gaseous 2+ ion, and so on.
Core idea: successive ionisation energy data shows how strongly each electron is held as electrons are removed from the atom or ion one at a time.
The large rises occur when removal moves from an outer shell into an inner shell that is closer to the nucleus.
Why Each Ionisation Energy Increases
Each ionisation energy is normally larger than the previous one because, after each electron is removed, the species becomes more positively charged.
The remaining electrons are attracted more strongly by the nucleus. There is also less electron-electron repulsion between the remaining electrons. This means it becomes harder to remove the next electron, so more energy is required each time.
A positive ion forms
Removing the first electron forms a positive ion, so the remaining electrons experience stronger attraction.
Electron-electron repulsion decreases
With fewer electrons left, there is less repulsion between electrons, so the remaining electrons are held more strongly.
The next electron is harder to remove
More energy is needed to overcome the stronger attraction between the nucleus and the next electron.
Why Big Jumps Happen
A big jump in successive ionisation energy shows that an electron is being removed from a shell closer to the nucleus.
Electrons in inner shells are closer to the nucleus and have less shielding from inner complete shells. They are therefore much more strongly attracted to the nucleus, so a much larger amount of energy is needed to remove them.
Exam focus: A big jump means the previous electron was the last electron in the outer shell. The next electron comes from an inner shell.
The position of the jump is used to infer how many electrons were in the outer shell before ionisation reached the next shell.
Using the First Big Jump to Find the Group
The first large jump tells you how many electrons were removed before the atom started losing electrons from an inner shell.
For main-group elements, count how many electrons are removed before the first big jump. That number gives the group number for Group 1 to Group 7 elements. For example, if the first big jump is between the second and third ionisation energies, the element is in Group 2.
| Pattern in successive ionisation energy | Outer-shell electrons | Likely group |
|---|---|---|
| Big jump between 1st and 2nd ionisation energies | 1 electron removed before the jump | Group 1 |
| Big jump between 2nd and 3rd ionisation energies | 2 electrons removed before the jump | Group 2 |
| Big jump between 3rd and 4th ionisation energies | 3 electrons removed before the jump | Group 3 |
| Big jump between 7th and 8th ionisation energies | 7 electrons removed before the jump | Group 7 |
Method: count the number of ionisation energies before the first major jump. This tells you the number of outer-shell electrons.

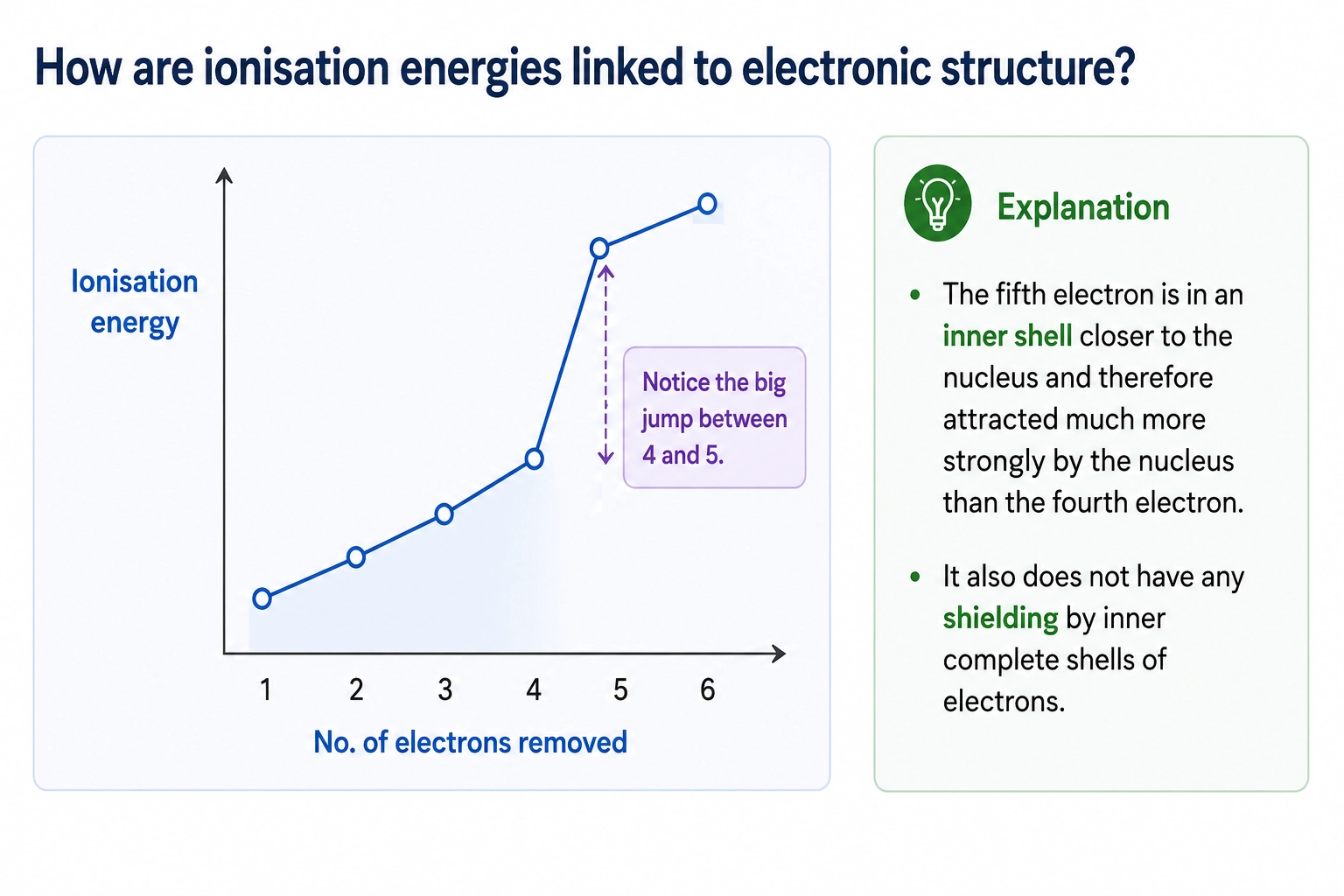

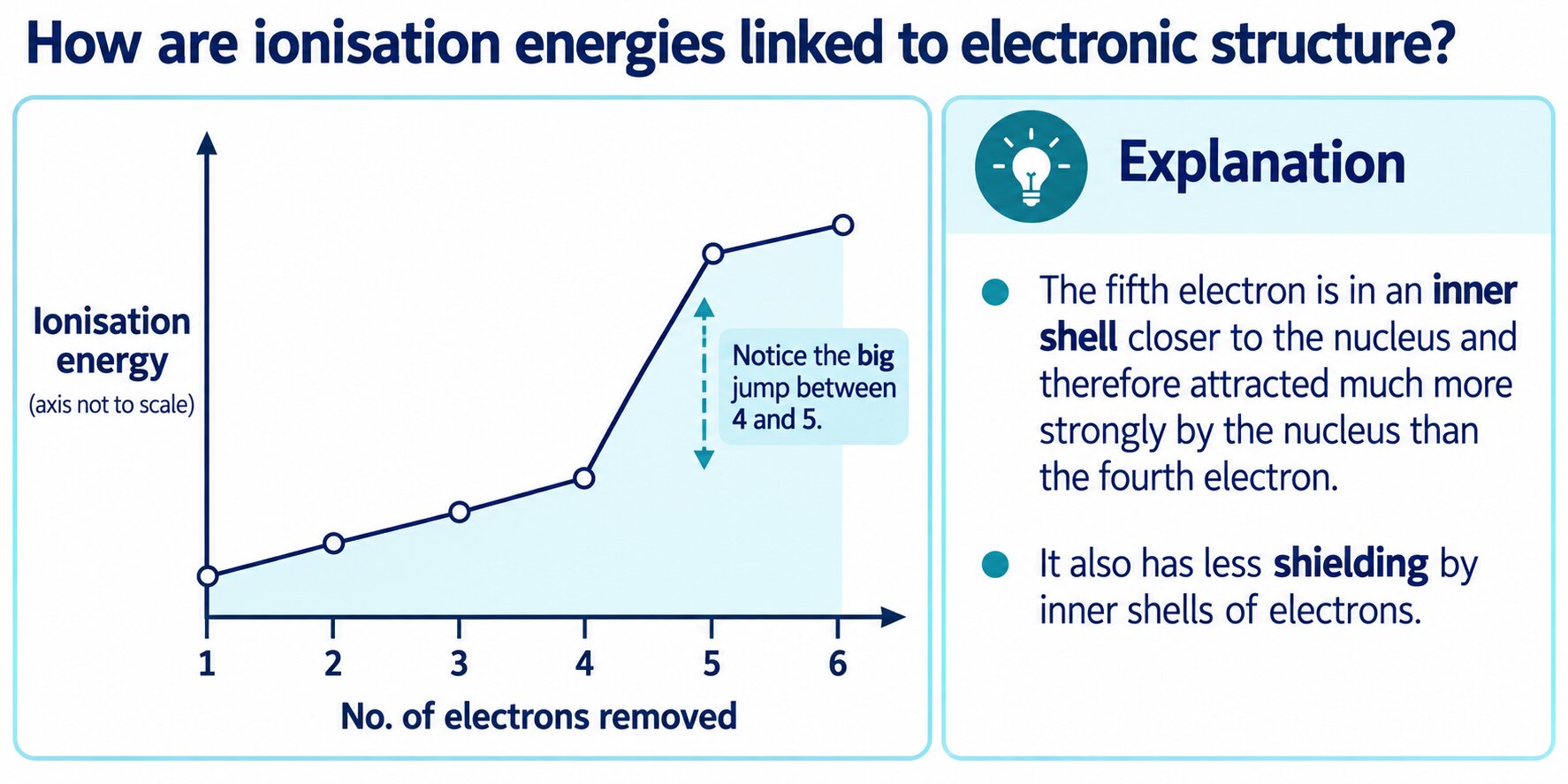

Using the Graph to Find Electronic Structure
Successive ionisation energy graphs can also be used to work out the number of electrons in each shell.
Start from the right-hand side of the graph and work from right to left. Count how many points appear before each big jump. This gives the number of electrons in each shell, starting with the first shell closest to the nucleus.

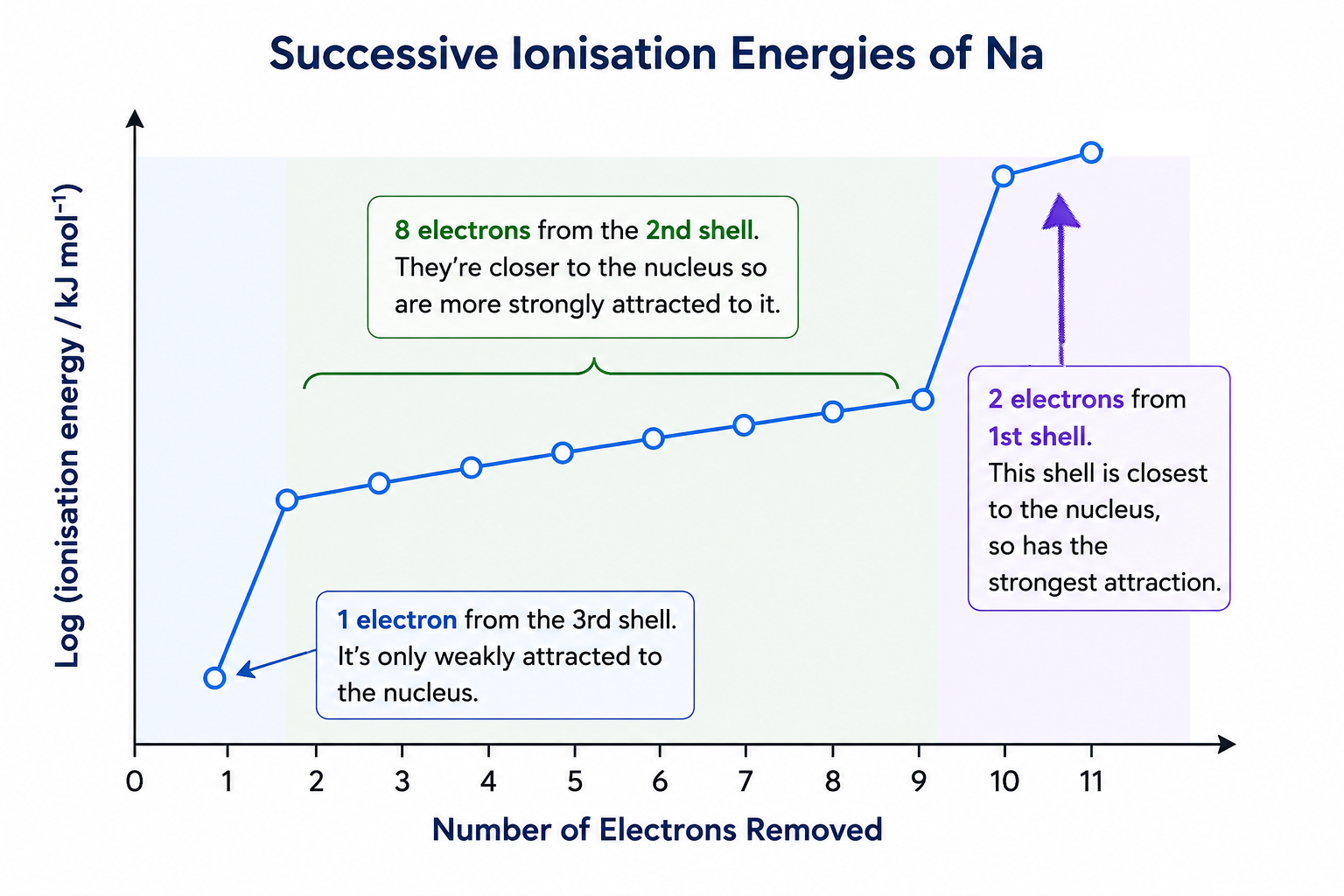

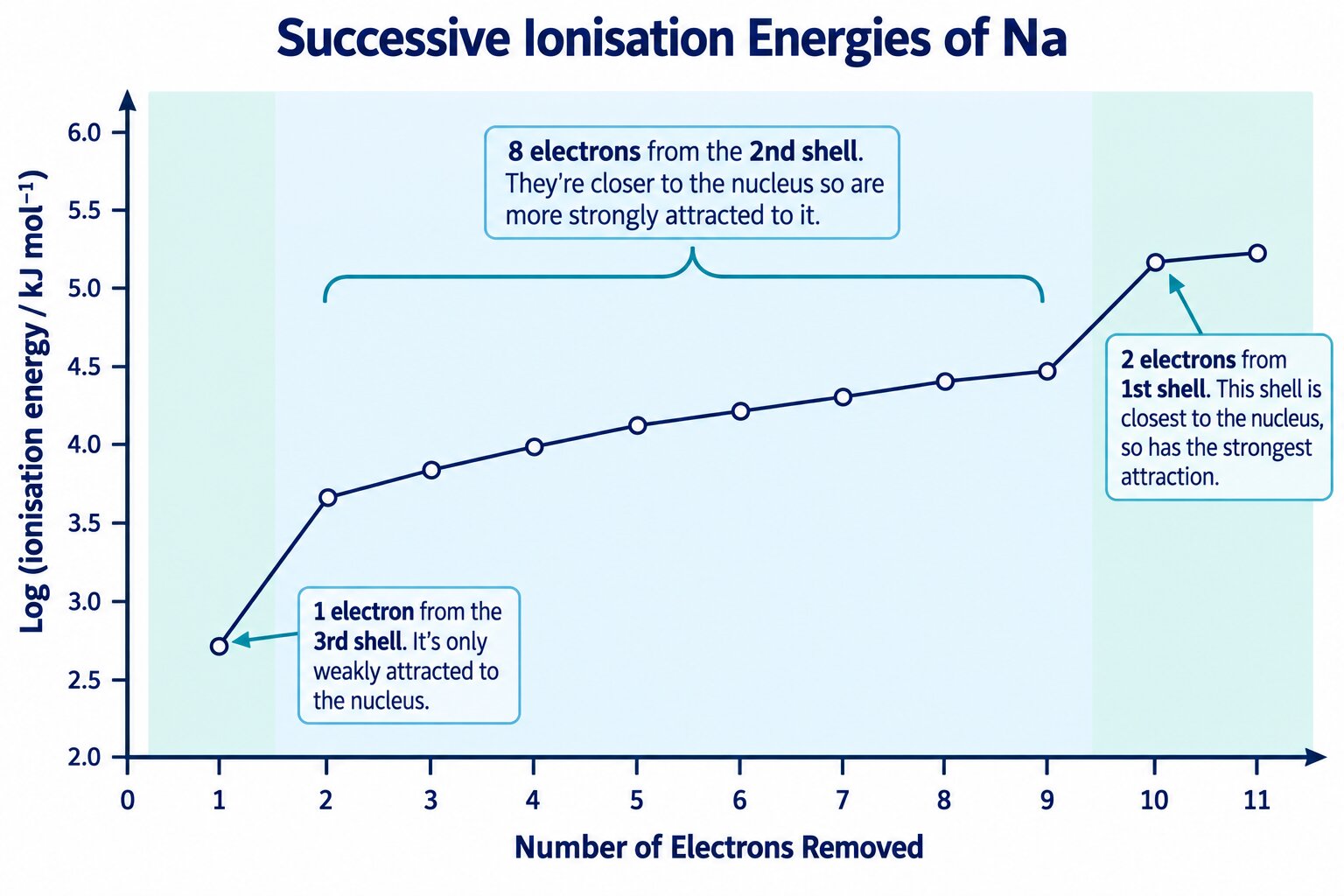

For sodium, the graph shows 2 electrons in the first shell, 8 in the second shell and 1 in the third shell.

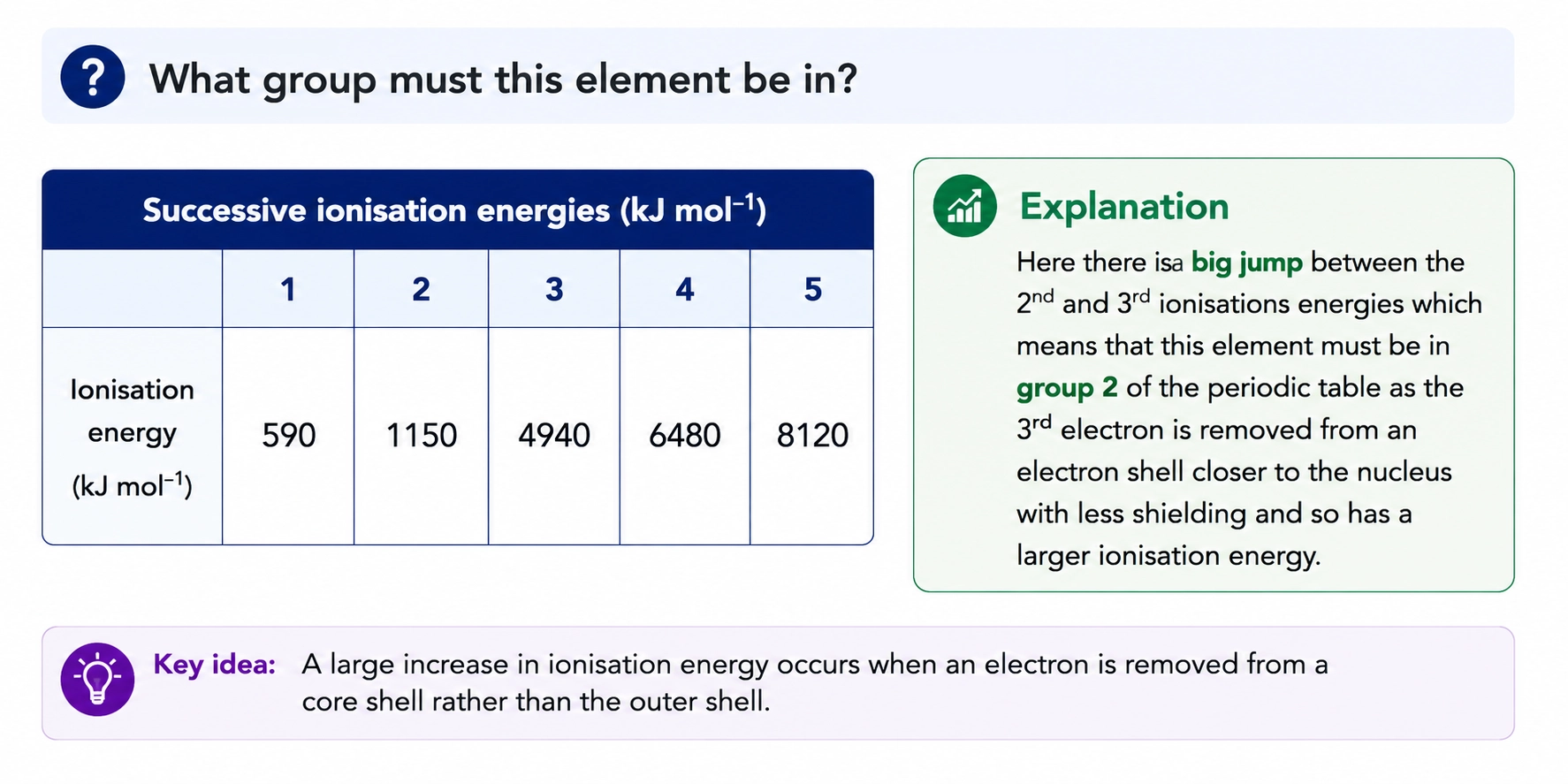

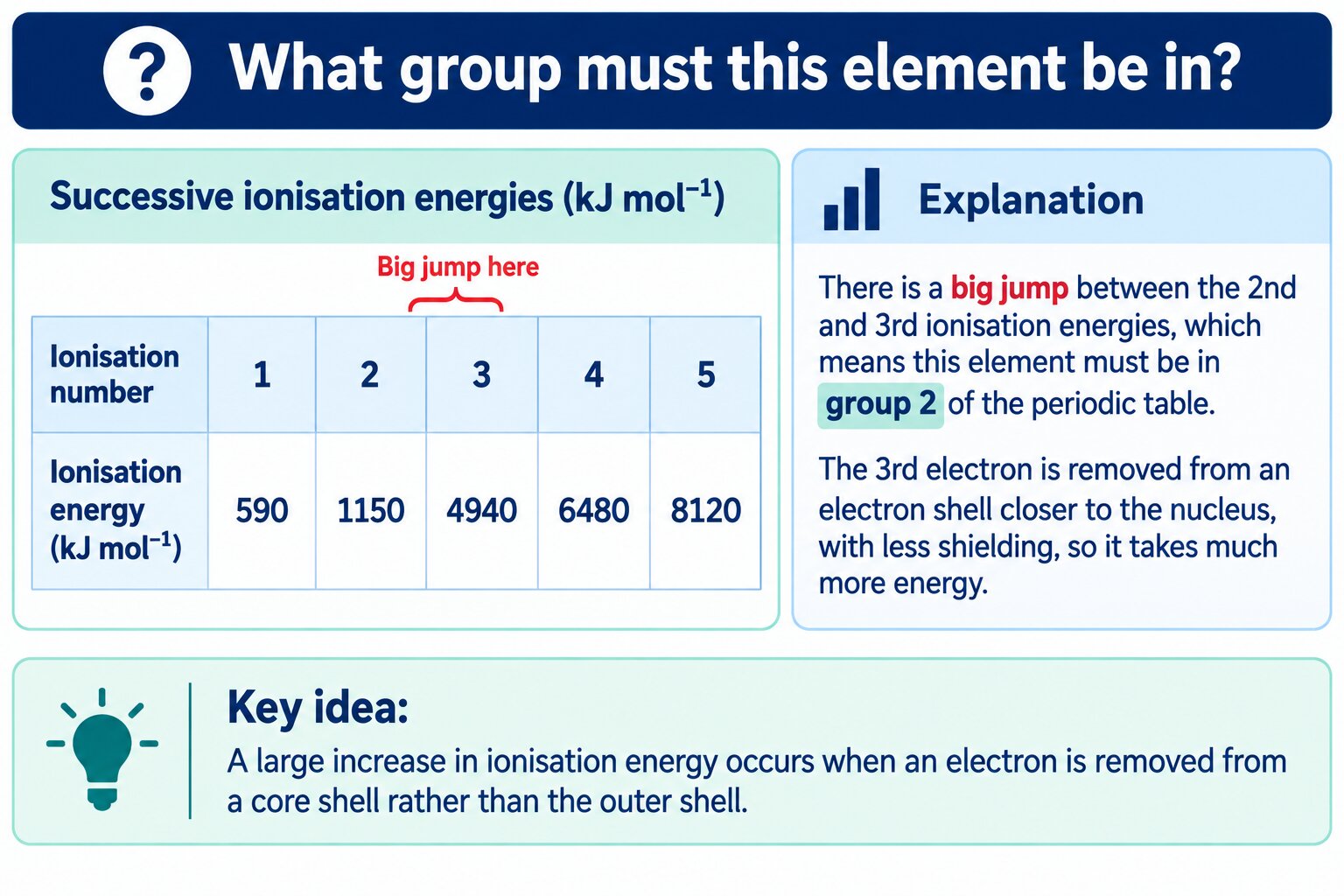

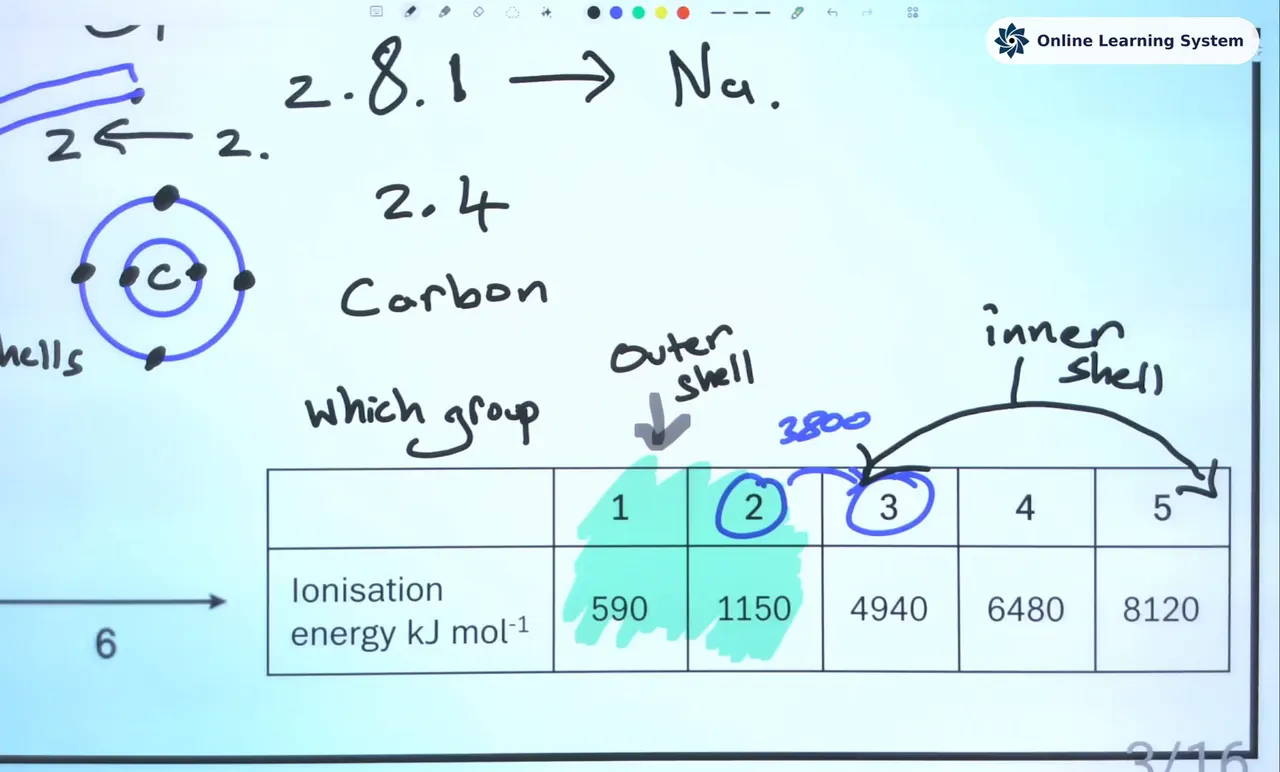

Worked Pattern Example
Suppose an element has the following successive ionisation energies:
| Ionisation number | 1st | 2nd | 3rd | 4th | 5th |
|---|---|---|---|---|---|
| Ionisation energy / kJ mol⁻¹ | 590 | 1150 | 4940 | 6480 | 8120 |
There is a large jump between the second and third ionisation energies. This means two electrons were removed before the first large jump, so the element has two electrons in its outer shell.
Conclusion: the element is in Group 2 because the third electron is removed from an inner shell closer to the nucleus with less shielding.
Common Exam Points
- Successive ionisation energies increase because each electron is removed from an increasingly positive species.
- After an electron is removed, attraction between the nucleus and the remaining electrons increases.
- Large jumps show that the next electron is being removed from a shell closer to the nucleus.
- The number of electrons removed before the first big jump gives the number of outer-shell electrons.
- The first large jump can be used to identify the group for main-group elements.
- Always explain jumps using distance from the nucleus, shielding and nuclear attraction.
- Do not simply say “it is in a new shell”. State that the electron is in a shell closer to the nucleus and is more strongly attracted.
Check Your Understanding
Use these short tasks to test the key ideas from this page before moving on to ionisation energy trends across periods and down groups.
QuickSnap
This text summary condenses the page into the essential exam ideas.
- Successive ionisation energies remove electrons one at a time from gaseous atoms or ions.
- Each value increases because the remaining electrons are attracted more strongly after a positive ion forms.
- A big jump means the next electron is being removed from an inner shell closer to the nucleus.
- Group number can be found by counting how many electrons are removed before the first big jump.
- Electronic structure can be inferred by counting groups of points between large jumps.
- Exam explanations should mention distance from the nucleus, shielding and nuclear attraction.
Master Atomic Structure and The Periodic Table for Edexcel A Level Chemistry
Continue from these free revision notes into the full Topic 1 Atomic Structure and The Periodic Table course, with guided video teaching, diagnostic MCQ practice, teacher-marked short-answer questions and a specification assignment with a personalised progress report.
Guided video teaching
Learn atomic structure, isotopes, mass spectrometry, ionisation energy, electron configuration and periodic trends through structured video lessons with worked examples and walkthroughs.
Instant MCQ feedback
Auto-marked MCQ quizzes provide immediate diagnostic feedback for every answer choice.
Teacher-marked SAQs
Submit written exam responses and receive chemistry specialist feedback with improvement guidance.
Progress tracking
Identify strengths and weaknesses across atomic structure, isotopes, mass spectrometry, ionisation energies, electron configuration and periodic trends with targeted reporting.
See how the course works
Click play to start the course preview animation.
Some ionic radii are shown.
| Ion | Ionic radius / nm |
|---|---|
| Na+ | 0.102 |
| K+ | 0.138 |
| F− | 0.133 |
| Cl− | 0.180 |
Which compound has the strongest ionic bonding?
Explain why the metallic bonding in magnesium is much stronger than that in sodium.
FAQs
Use these answers to check the common exam logic behind successive ionisation energy questions.
Why do successive ionisation energies increase?
They increase because each electron is removed from a species with a greater positive charge. The remaining electrons are held more strongly by the nucleus, so more energy is needed to remove the next electron.
What does a large jump in successive ionisation energy show?
A large jump shows that the next electron is being removed from an inner shell closer to the nucleus. This electron experiences less shielding and stronger nuclear attraction.
How can successive ionisation energies show the group number?
Count how many electrons are removed before the first large jump. For main-group elements, this number is the number of outer-shell electrons and therefore indicates the group number.
How does the sodium graph show that sodium is in Group 1?
Sodium has one electron removed before the first large jump. This shows it has one outer-shell electron, so sodium belongs to Group 1.
What should an exam answer include when explaining a jump?
An exam answer should state that the electron is removed from a shell closer to the nucleus, with less shielding and stronger attraction to the nucleus.
