Catalytic Converters
A concise revision guide to catalytic converters in car exhaust systems, including the pollutants removed, the catalyst metals used, key conversion reactions and why converters work best at high temperatures.
- 6B.11-e
- 6B.13
What these spec points say
- 6B.11-e know unburned hydrocarbons are formed during combustion of alkane fuels
- 6B.13 understand how the use of a catalytic converter solves some problems caused by pollutants
Catalytic Converter Surface
Choose a step to watch CO and NO adsorb on the metal, rearrange into CO₂ and N₂, leave the surface, and see the honeycomb that holds it all. Drag to rotate.
© Dr. Mohammed Al-Fatah – onlinelearningsystem.net
GCSE Recap: Catalysts and Surface Area
Start with the GCSE ideas about catalysts and surface area.
Why Catalytic Converters Are Used
Catalytic converters are fitted to car exhaust systems to reduce harmful emissions released during combustion.
They remove carbon monoxide, CO, nitrogen oxides, NOx, and unburned hydrocarbons from exhaust gases.
These pollutants are converted into less harmful products: carbon dioxide, CO2, nitrogen, N2, and water, H2O.
Key idea: A catalytic converter does not stop combustion pollutants forming in the engine. It reduces the harmful gases after they enter the exhaust system.
Quick Check: Which Gases Decrease?
Click every exhaust gas that decreases as it passes through the converter.
Structure of a Catalytic Converter

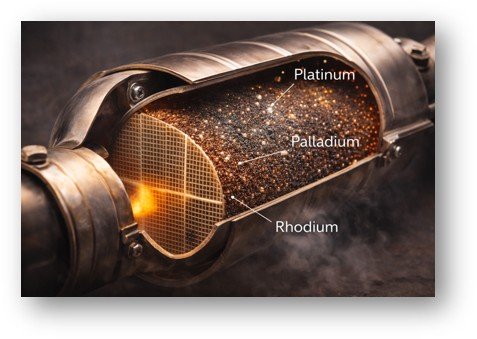

Inside the converter is a ceramic honeycomb structure. The honeycomb design provides a very large surface area so the exhaust gases can contact the catalyst efficiently.
The ceramic structure is coated with a thin layer of catalyst metals, commonly including platinum, palladium and rhodium.
These metals speed up the reactions that convert harmful exhaust gases into less harmful products. The catalyst itself is not used up in the overall process.
The reactions happen on the surface of the catalyst. Pollutant molecules are first held on the metal surface, which is called adsorption, and this weakens the bonds in them.
The new molecules then form and leave the surface again, which is called desorption, freeing that part of the surface for more gas.
A large surface area means that more molecules can be adsorbed and react at the same time.
The honeycomb structure gives a large catalyst surface area for exhaust gases to react on as they pass through the converter.
Quick Check: Change the Design
Predict what happens when the honeycomb is replaced by a different design.

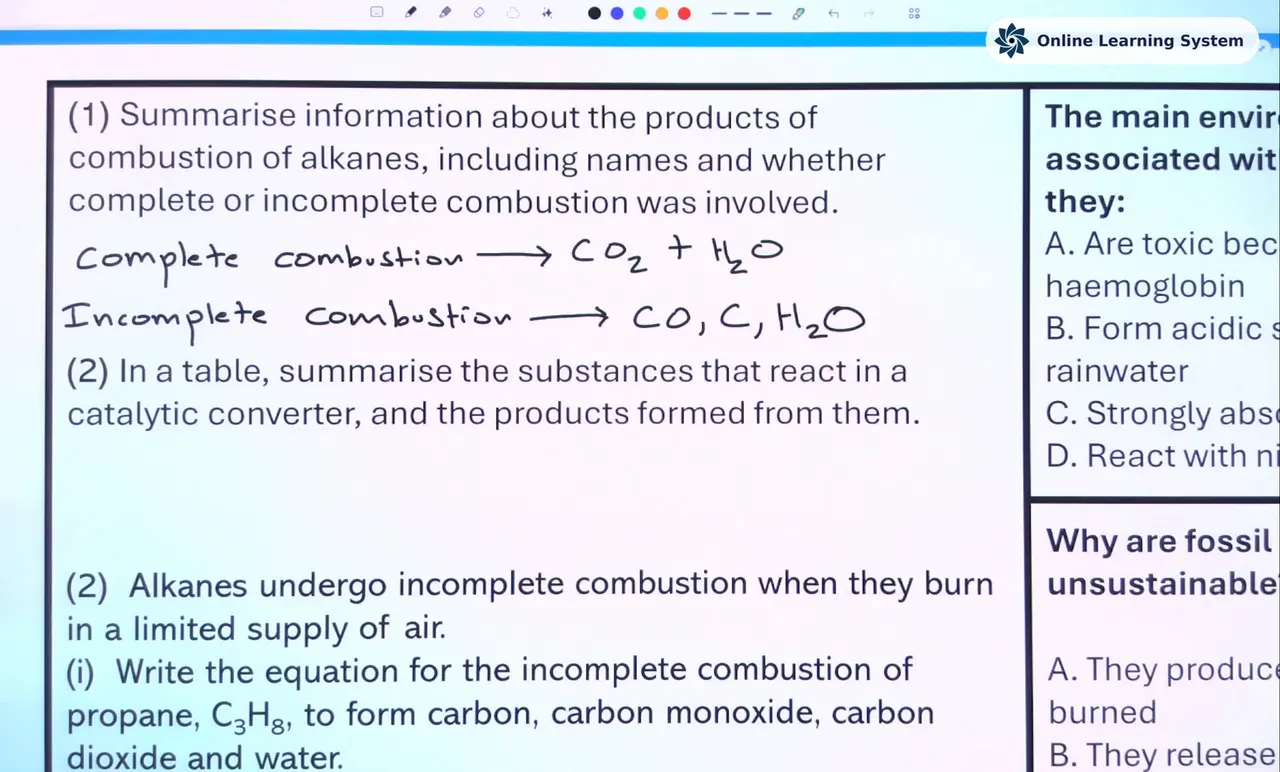

Watch: what a catalytic converter changes
An exam question: which gases react in a catalytic converter, and what does each one become?
Key Reaction: Carbon Monoxide and Nitrogen Monoxide
One important reaction in a catalytic converter involves carbon monoxide reacting with nitrogen monoxide.
The carbon monoxide is oxidised to carbon dioxide, while nitrogen monoxide is reduced to nitrogen.
Carbon monoxide gains oxygen, so it is oxidised. Nitrogen monoxide loses its oxygen, so it is reduced.
Nitrogen dioxide, NO2, is removed in the same way, reacting with carbon monoxide to give nitrogen and carbon dioxide.
That is why the converter is described as removing nitrogen oxides, NOx, and not only NO.

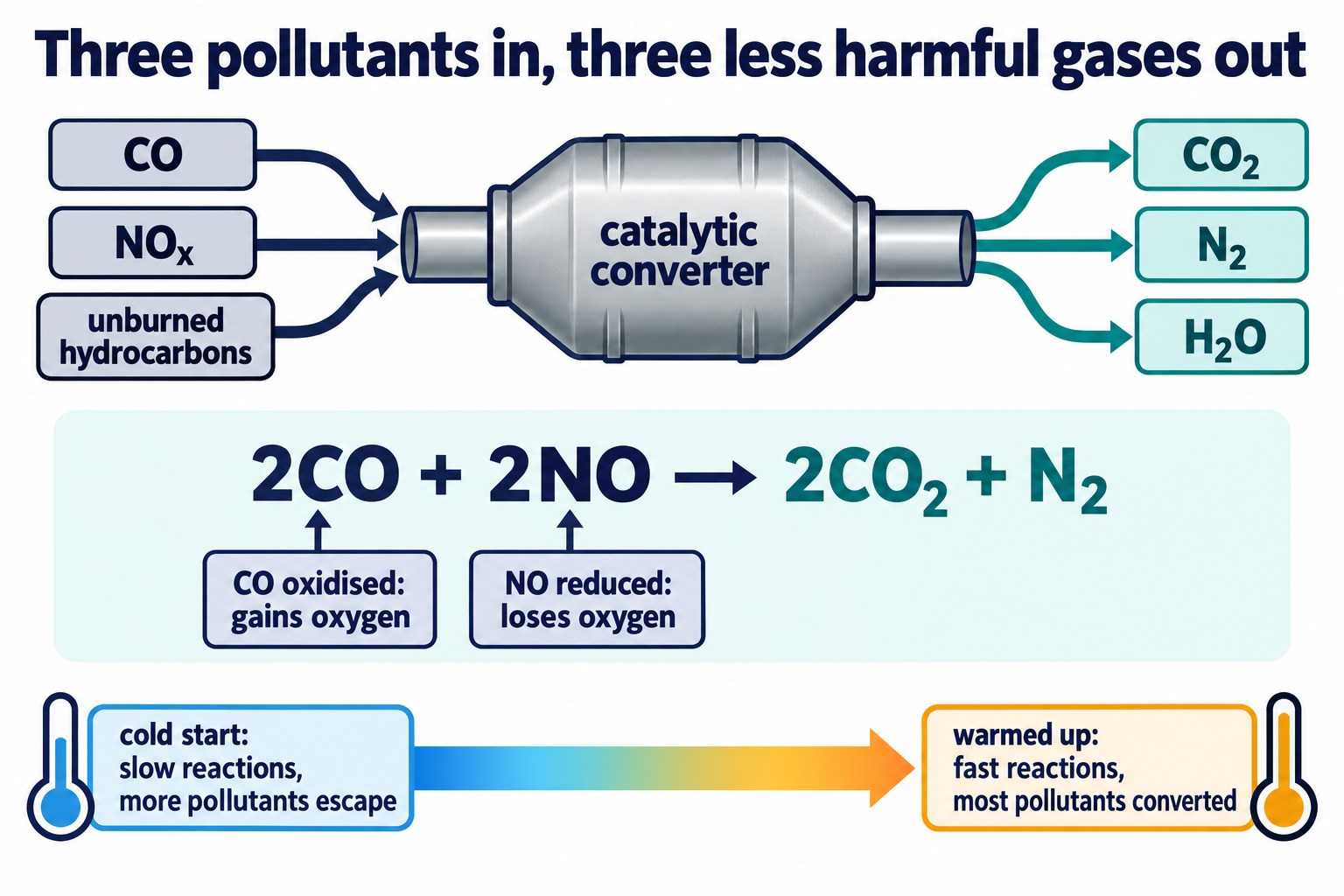

Key equation: 2CO + 2NO → 2CO2 + N2
| Reactant | Problem | Product formed |
|---|---|---|
| Carbon monoxide, CO | Toxic gas from incomplete combustion | Carbon dioxide, CO2 |
| Nitrogen monoxide, NO | Nitrogen oxide pollutant from hot engines | Nitrogen, N2 |
Gases adsorb onto the metal, react, then desorb as CO₂, N₂ and H₂O.
Quick Check: Oxidised or Reduced?
Decide what is oxidised and reduced, and work out the reacting ratios.
Unburned Hydrocarbons in Exhaust Gases
Exhaust gas still contains some oxygen, so carbon monoxide and unburned hydrocarbons are also oxidised by oxygen on the catalyst: 2CO + O2 → 2CO2, and the hydrocarbons are oxidised to carbon dioxide and water.
Removing all three pollutants is why the unit is called a three-way catalytic converter.
Unburned hydrocarbons can also react with nitrogen oxides inside a catalytic converter.
For example, octane, C8H18, can react with nitrogen monoxide to produce carbon dioxide, nitrogen and water.
Example equation: C8H18 + 25NO → 8CO2 + 12½N2 + 9H2O
Remember: double every number if you are told not to use fractions: 2C8H18 + 50NO → 16CO2 + 25N2 + 18H2O.
Exam focus: When asked about catalytic converters, name both the harmful gases removed and the less harmful products formed. Do not just state that the converter “cleans the exhaust”.
Quick Check: Balance the Equations
Type the missing balancing numbers in each converter equation.
Temperature and Effectiveness
Catalytic converters work best at high temperatures. This is why they are most effective once the engine has warmed up.
At low temperatures, the reactions occur more slowly, so the converter is less effective immediately after a cold start.
As the exhaust system becomes hotter, more pollutant molecules have energy greater than the activation energy, so more of the collisions on the catalyst surface are successful and the rate rises.
| Condition | Effect on converter | Exam conclusion |
|---|---|---|
| Cold engine | Catalyst reactions are slower | More pollutants may leave the exhaust |
| Warm engine | Catalyst reactions are faster and more effective | Pollutants are converted more efficiently |
Quick Check: Explain the Heated Converter
Explain why warming the converter before the engine restarts cuts pollution.
Quick Check: Catalytic Converter Summary
Pull the whole page together by choosing the accurate statement in each round.
Catalytic Converter FAQs
These questions cover the main exam points on catalytic converters in car exhaust systems.
What does a catalytic converter do?
A catalytic converter reduces harmful emissions from car exhaust gases by converting carbon monoxide, nitrogen oxides and unburned hydrocarbons into less harmful products.
Which catalyst metals are used in catalytic converters?
Catalytic converters commonly use platinum, palladium and rhodium coated onto a ceramic honeycomb structure.
What are the products formed in a catalytic converter?
The main less harmful products are carbon dioxide, nitrogen and water.
Why do catalytic converters work better when the engine is warm?
They work better at high temperatures because the catalyst reactions occur faster once the engine and exhaust system have warmed up.
Why is the catalyst coated on a honeycomb?
The honeycomb gives a very large surface area from a small amount of expensive metal. More gas molecules can be adsorbed at once, so the pollutants are removed faster.
